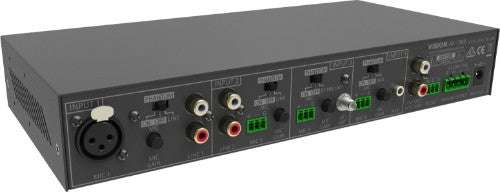

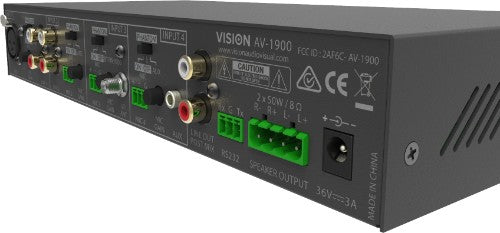

Vision AV-1900 audio amplifier Home Black

2 x 50w Mixer Amplifier, D-Class. Bluetooth 5.0, 4 x Microphone In, 2-phono (RCA), Minijack, Line Output, RS-232

Description

The AV-1900 is a highly capable mixer-amplifier packed with useful features to make it as easy as possible to operate. It is designed for use in demanding applications like meeting spaces, small auditoriums, lecture theatres, school halls, and small churches. It has professional audio features normally only found in much more expensive mixer amps.

Bluetooth

For ease of connectivity it has a Bluetooth input. The device name and pin are fixed and cannot be changed. It can only pair with one device at a time.

A device can be manually unpaired by pressing the INPUT 3 dial. If you do not want Bluetooth active just set input 3 to mic input with the switch on the rear.

Mixer Amp

This amp has four inputs, each of which can either be used for a microphone or a line-level input. It is a true mixer amp, so it can bring together multiple sources and play them at the same time.

Mic Pre-Amp Trim

The input gain for each mic input can be “trimmed” – adjusted on the rear panel. This allows the installer to “turn up” less sensitive mics, and “turn down” hot inputs.

Four Microphone Inputs

All mic inputs are “balanced” to eliminate electro-magnetic noise induced on long cables. Input 1 uses a professional XLR connector – more convenient for rental and portable use, and the other inputs use phoenix connectors – more suited to permanent installations.

Switchable Phantom Power

Each mic input has Phantom power which is a voltage required to make professional condenser mics work. Phantom can be turned off on each input discretely.

RS-232

Designed for integration with a bigger system, it can be controlled by a control system such as Techconnect Control via RS-232.

D-Class

An efficient Digital-class amplifier chip dramatically reduces power consumption especially at rest, and makes this amp super-small.

3 x Stereo Inputs

Three line-level stereo inputs accept input from a variety of sources such as computers (via the headphone jack), tablets or phones. Inputs 1 and 2 use 2-phono (RCA) connectors. Input 4 is via a Minijack connector, and is duplicated on the front panel for adhoc access.

Line Output

A line-level pre-output on the rear bypasses the internal amplifier. It would connect to a larger amplifier or powered loudspeakers. It is post-mix; volume adjustments made on the front panel affects the output level.

Auto-Standby

If the amplifier senses no input it will automatically go into standby mode. When it senses input it will reactivate. Auto-standby can be disabled via RS-232.

Mounting Options

Rack ears are included so it can be integrated into an AV rack.

Specifications

Audio
Frequency range	50 - 18000 Hz
Amplifier class	D
Total Harmonic Distortion (THD)	10%
Signal-to-Noise Ratio (SNR)	70 dB
Input sensitivity	700 mV
Input impedance	47000 Ω
Ports & interfaces
Speakers connectivity type	3.5mm / XLR / RCA
XLR in	Yes
Line outputs (RCA)	1
Line inputs (RCA)	2
Microphone in	Yes
Technical details
Impedance	8 Ω
Purpose	Home
Product colour	Black
Connectivity technology	Wired & Wireless
Bass adjustment	Yes
Treble adjustment	Yes
Country of origin	China
Harmonized System (HS) code	85184000
Compliance certificates	CE, RoHS
Power
AC input voltage	100 - 240 V
Power consumption (typical)	100 W
Weight & dimensions
Width	283 mm
Depth	135 mm
Height	45 mm
Weight	1.2 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Indication
LED indicators	Yes
Certificates
Certification	RoHS, WEEE, CE/EMC, CE/LVD, RCM_SDOC, FCC_BT3.0, FCC_BT4.0, CE-RED
Packaging data
Package weight	3 kg
Package width	333 mm
Package depth	200 mm
Package height	155 mm
Logistics data
Harmonized System (HS) code	85184000
