Vision TC3-AMP audio amplifier 2.0 channels Home White

2 x 25w @ 8 ohms, 80Hz~22kHz, 98dB, 2 x Stereo inputs, IR Remote control

Description

By using latest low-impedance digital amplifier chip technology the new Techconnect Amp module outputs a massive 2 x 25 watts RMS (at 8 ohms) but fits into the space of a Techconnect module.

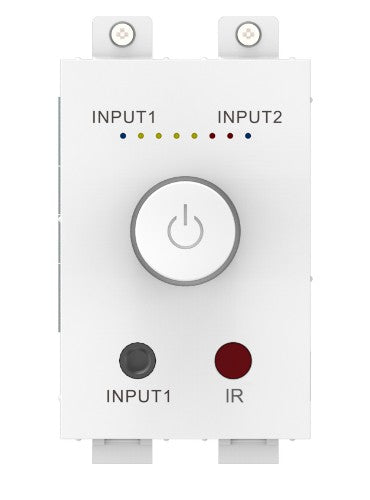

Front Panel Input
Two Inputs are wired into the rear with removable phoenix connectors, but Input 1 is also duplicated on the front panel with a minijack socket for convenience. This “half-normalled” input disconnects the rear terminal while in use.

D-Class Amplifier
Digital amplifiers use no power unless they are amplifying program, so even on at full volume; unless it is receiving input it is effectively off. Digital amplifiers also have the advantage of running cold so a bulky heatsink is not necessary

Power Four Speakers
Don’t let size deceive you: the Techconnect Amp can drive into a 4 ohm load allowing you to power up to four 8 ohm speakers (or two 4 ohm speakers).

Preset Memory
By default when power is activated the Techconnect Amp turns on and resumes the most recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on – for example in hotel guest rooms.

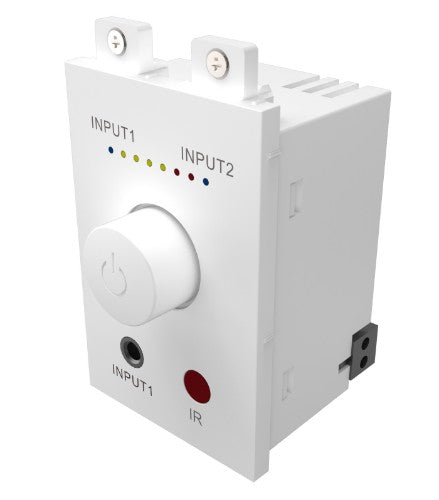

Tactile Dial
A simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.

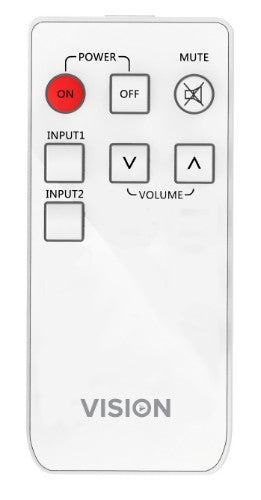

Remote Control
A remote control is included and IR receivers are positioned on the front and rear for integration with a control system such as the Techconnect Control. Note: there is no tone control with this amplifier. Vision’s spare remote controls have tone buttons but they do not work with this product.

Easy to Install and Uninstall

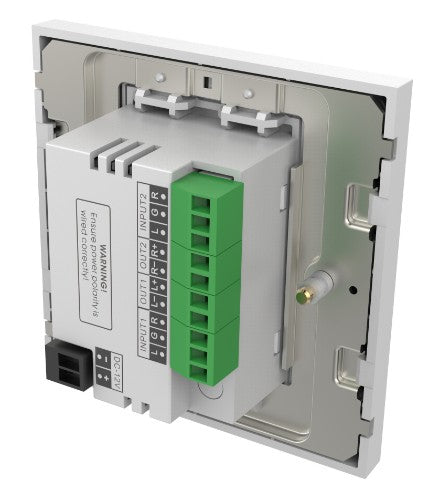

A robust module that is easy to install or remove and disconnect from the front. Removable phoenix connectors allow non-technical end users to uninstall it very easily if required.

Cables Included
Speaker cable is included plus short input cables are included for connection to the rear of adjacent input modules on the Techconnect.

Secure
Ideal when you don’t have furniture to sit an amplifier on, and because it is mounted to the wall it is much less obvious as a target for theft.

Close at Hand
Can be positioned anywhere in the room making it perfect for training rooms, boardrooms, and classrooms.

Integrated Techconnect Family

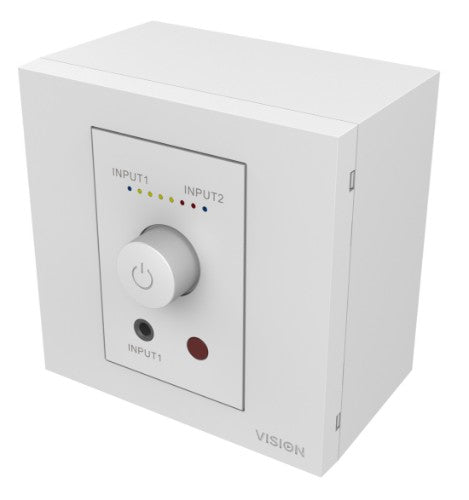

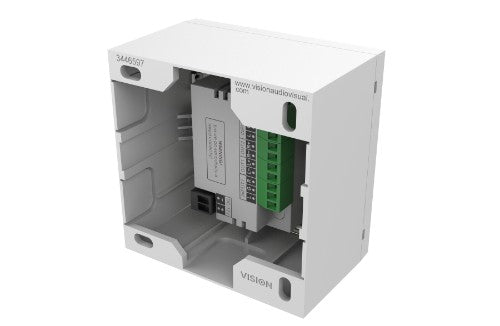

Included is a single-gang backbox and surround, or alternatively you can mount it in a double-gang surround with other Techconnect modules.

Specifications

Audio
Frequency range	80 - 22000 Hz
Audio output channels	2.0 channels
Peak power per channel	25 W
Amplifier class	D
Total Harmonic Distortion (THD)	1%
Signal-to-Noise Ratio (SNR)	98 dB
RMS power output per channel (8 Ohm)	25 W
Input sensitivity	500 mV
Input impedance	50000 Ω
RMS rated power	50 W
Ports & interfaces
Audio (L/R) in	2
Audio (L/R) out	2
DC-in jack	Yes
Technical details
Purpose	Home
Product colour	White
Connectivity technology	Wired
Remote control included	Yes
Harmonized System (HS) code	85184000
Compliance certificates	RoHS
Power
AC input frequency	50 - 60 Hz
AC input voltage	100-240 V
DC input voltage	12 V
Power consumption (typical)	50 W
Weight & dimensions
Width	42 mm
Depth	46 mm
Height	64 mm
Weight	63 g
Certificates
Certification	RoHS, WEEE, CE/EMC, RCM, FCC
Packaging data
Package dimensions (WxDxH)	240 x 205 x 63 mm
Package weight	1.1 kg
Packaging content
Remote control included	Yes
Logistics data
Harmonized System (HS) code	85184000
