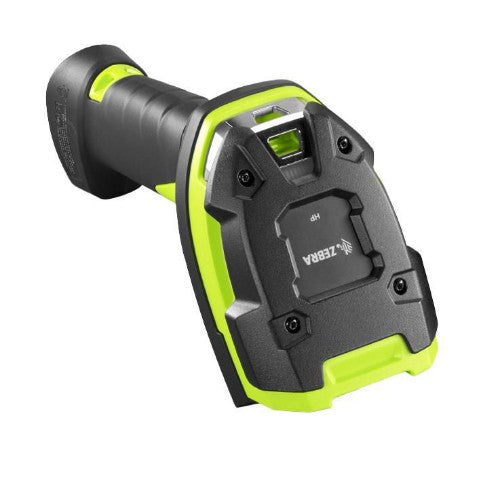

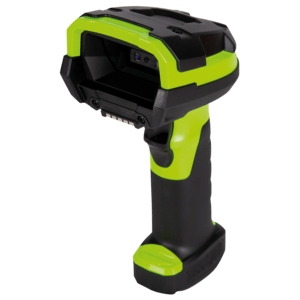

Zebra DS3608-HP Handheld bar code reader 1D/2D Laser Black, Green

DS3608-HP, 1D/2D Imager, OCR, 655nm laser, 1280 x 960, Two warm white light LEDs

Description

UNSTOPPABLE PERFORMANCE FOR SUPERIOR CAPTURE OF 1D/2D BARCODES, PHOTOS, DOCUMENTS AND MORE
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HP corded and DS3678-HP cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor.

In addition to capturing virtually any 1D or 2D barcode as far as 7 ft./2.1 m away, these scanners give you the flexibility to capture a wide range of business information to streamline many everyday business processes, including OCR, documents and photos.

No matter what types of data your workers need to capture, you get all the features you need for truly unstoppable performance, redefining scanner reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE
Your workers can capture information as fast as they can pull the trigger — from virtually any electronic or printed barcode in any condition to photos that can provide undisputable proof of condition for incoming shipments, plus images of highly legible documents for electronic recordkeeping. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution	1280 pixels
Yaw reading angle	-45 - 45°
Wavelength	655 nm
Tilt reading angle	-65 - 65°
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-65 - 65°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
Programming function	Yes
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Design
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Power
Power source type	Battery
Number of reads per charge	70000
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh
Weight & dimensions
Width	132 mm
Depth	76 mm
Height	185 mm
Weight	309 g
Technical details
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Programming function	Yes
Harmonized System (HS) code	84716070
Compliance certificates	RoHS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84716070
