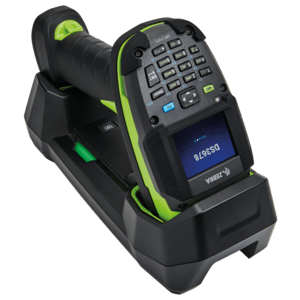

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

DS3678-HD, 1D/2D Imager, IUID, 655nm laser, 1280 x 960, Two warm white light LED, Bluetooth 4.0 (LE)

Description

UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution	1280 pixels
Yaw reading angle	-45 - 45°
Wavelength	655 nm
Tilt reading angle	-65 - 65°
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-65 - 65°
Ports & interfaces
Wireless range	100 m
Connectivity technology	Wired & Wireless
Bluetooth version	4.0
Bluetooth Low Energy (BLE)	Yes
Ethernet LAN	Yes
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
Programming function	Yes
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Design
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Power
Power source type	Battery
Number of reads per charge	100000
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh
Weight & dimensions
Width	142 mm
Depth	76 mm
Height	185 mm
Weight	411 g
Technical details
Type	Handheld bar code reader
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Programming function	Yes
Harmonized System (HS) code	84716070
Compliance certificates	RoHS
Network
Ethernet LAN	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84716070
