Zebra ZD510-HC label printer Direct thermal 300 x 300 DPI 102 mm/sec Wired Ethernet LAN

12 dots/mm (300 dpi), RTC, USB, Ethernet, ZPLII

Description

A WRISTBAND PRINTER THAT SPECIALIZES IN HEALTHCARE
Patient wristbands are the foundation for a safer, more efficient process for delivering care. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Offering comprehensive connectivity options, a disinfectant-ready UV-resistant housing and the powerful Print DNA suite of applications, utilities and developer tools, the ZD510-HC increases staff productivity and patient safety. Also capable of printing wristbands for amusement, water-park and entertainment applications, the ZD510-HC is the industry's easiest to use and most dependable wristband printing solution.

VIRTUALLY NO TRAINING REQUIRED

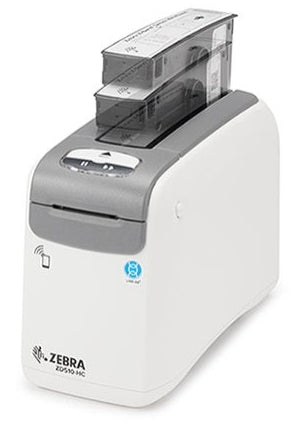

The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The printer instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality.

EXCEPTIONAL QUALITY WITH ZEBRA Z-BANDS
Designed, produced and rigorously pre-tested, you get optimum image durability and scanning performance with Z-Band wristbands. They are resistant to hand sanitizers and are available in a variety of sizes, softness levels and colors.

EASY TO CLEAN
The ZD510-HC printer's disinfectant ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping prevent the spread of germs and increase patient safety.

TRUST YOUR WRISTBAND PRINTING TO A SPECIALIST
The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Also capable of printing wristbands for amusement, water-park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.

Specifications

Print quality
Maximum resolution	300 x 300 DPI
Maximum printing width	3.02 cm
Printing
Minimum print length	7.6 cm
Colour	No
Print speed	102 mm/sec
Maximum resolution	300 x 300 DPI
Maximum printing width	3.02 cm
Print technology	Direct thermal
Network
Wi-Fi	No
Ethernet LAN	Yes
Ports & interfaces
USB 2.0 ports quantity	2
Optional connectivity	Wireless LAN
Connectivity technology	Wired
Bluetooth	No
Wi-Fi	No
Ethernet LAN	Yes
USB port	Yes
Performance
Certification	FCC Part 15, Subpart B, VCCI, RCM CE: EN 55032:2012 B, EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL IEC 60601-1:2012
Page description languages	ZBI, ZPL, ZPL II
Design
Product colour	White
Built-in display	No
Certification	FCC Part 15, Subpart B, VCCI, RCM CE: EN 55032:2012 B, EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL IEC 60601-1:2012
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Product colour	White
Certificates
Certification	FCC Part 15, Subpart B, VCCI, RCM CE: EN 55032:2012 B, EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL IEC 60601-1:2012
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	4.4 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	127 mm
Depth	242 mm
Height	178 mm
Weight	1.4 kg
Package type	Box
Packaging data
Package type	Box
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Other features
Quantity per pack	1 pc(s)
