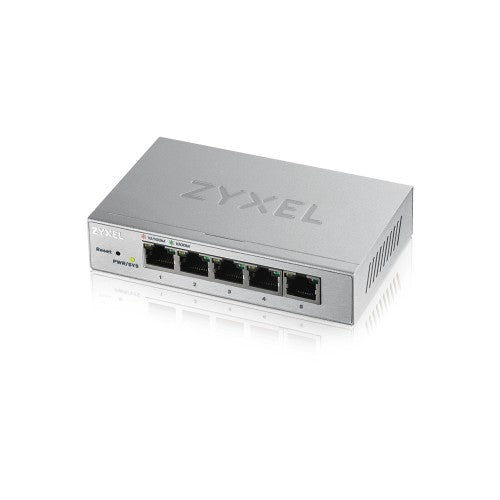

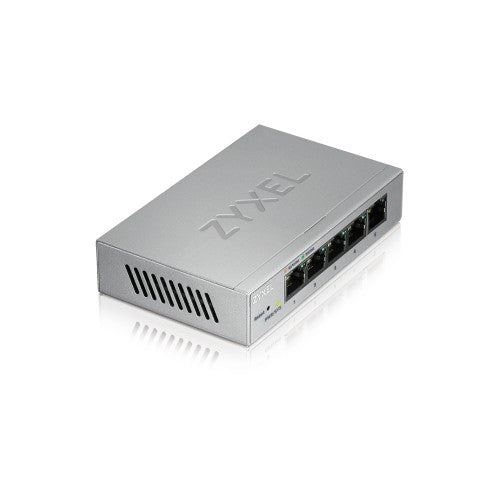

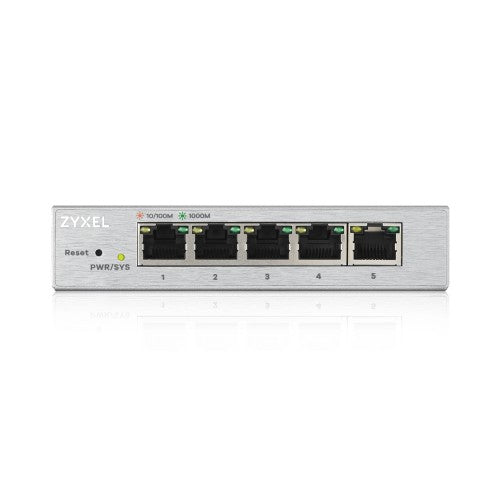

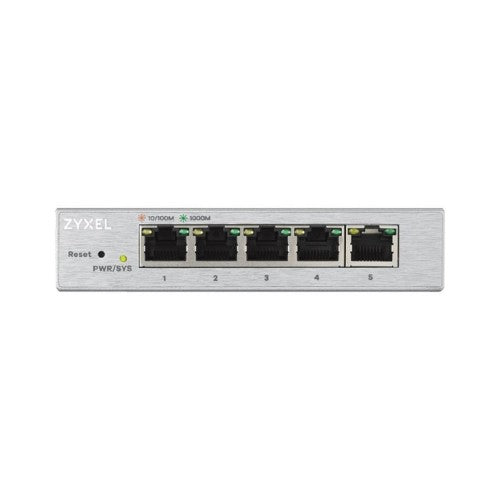

Zyxel GS1200-5 Managed Gigabit Ethernet (10/100/1000) Silver

Easy web management and set-up wizard This switch comes with a user-friendly web-based set-up wizard that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business. IGMP Snooping for optimized traffic delivery Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming. VLAN segregation for enhanced network security VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. Enhanced port-based QoS for better traffic control QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow. Link Aggregation increase throughput beyond what a single connection could sustain GS1200-5/8 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability. Advanced energy-savings at work This switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic. Fanless, noiseless design Extend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail. More comprehensive smart features included Featuring Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!,

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Performance
Packet buffer memory	1 MB
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
Power consumption (max)	2.03 W
Input current	1 A
DC input voltage	5 V
Technical details
Product colour	Silver
Firmware upgradeable	Yes
Rack mounting	No
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Data transmission
Jumbo frames	9000
Packet buffer memory	1 MB
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Security
Authentication	Auto VLAN, MAC-based authentication
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	IGMPv1,IGMPv2,IGMPv3
Certificates
Safety	CE-LVD, BSMI
Electromagnetic compatibility	CE, FCC, BSMI, Class B
Memory
Packet buffer memory	1 MB
Design
Safety	CE-LVD, BSMI
Product colour	Silver
LED indicators	Power
Electromagnetic compatibility	CE, FCC, BSMI, Class B
Rack mounting	No
Indication
LED indicators	Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	121 mm
Depth	75 mm
Height	26 mm
Weight	233 g
Packaging data
AC adapter included	Yes
Package type	Box
Rubber feet	Yes
Quick start guide	Yes
Package width	127 mm
Package depth	82 mm
Package height	95 mm
Package weight	388 g
Logistics data
Harmonized System (HS) code	85176990
Packaging content
AC adapter included	Yes
Rubber feet	Yes
Quick start guide	Yes
