Description

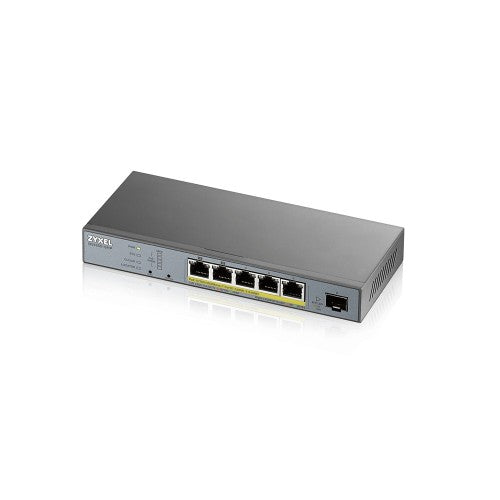

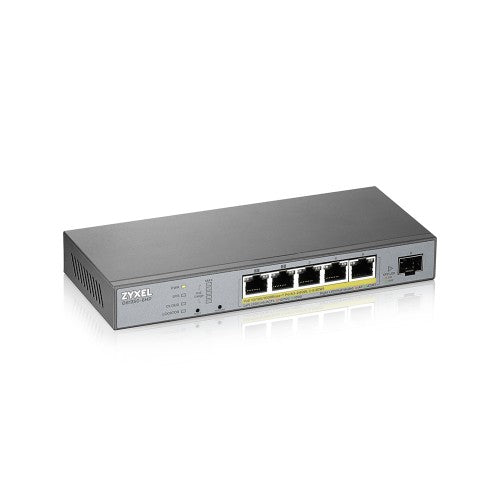

Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications
New outlook
Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.
Specialized PoE software features for surveillance
Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.
Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.
High power budget, intuitive front panel design

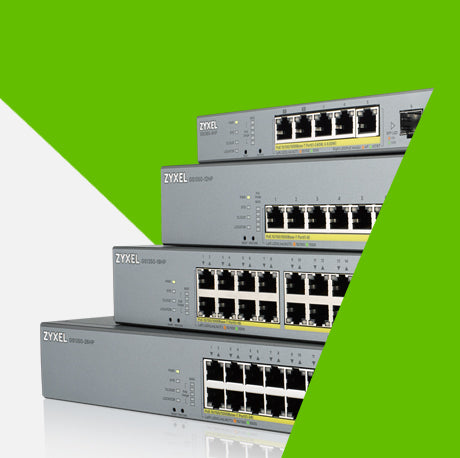

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.
Unique hardware, robust design
Stabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.
Selected power supply
2X Surge and ESD protection.
Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.
Intelligent System Monitor
Keeps the system operational from anomalies.
Patented Ethernet Protection
- 4X Surge protection.
- 2X ESD resistant.,
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Web-based management | Yes |
System event log | Yes |
MIB support | RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113 |
Switch layer | L2 |
Configuring Location Settings (CLI) | Yes |
Ports & interfaces | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
SFP module slots quantity | 1 |
Basic switching RJ-45 Ethernet ports quantity | 5 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network | |
IGMP snooping | Yes |
IGMP proxy | Yes |
Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Number of VLANs | 256 |
Flow control support | Yes |
Broadcast storm control | Yes |
10G support | No |
Virtual LAN features | MAC address-based VLAN, Port-based VLAN |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 256 |
Virtual LAN features | MAC address-based VLAN, Port-based VLAN |
Data transmission | |
Number of VLANs | 256 |
Packet buffer memory | 0.525 MB |
MAC address table | 8000 entries |
Switching capacity | 12 Gbit/s |
Forwarding rate | 8.9 Mpps |
Performance | |
Packet buffer memory | 0.525 MB |
Mean time between failures (MTBF) | 2021885.87 h |
Firmware upgradeable | Yes |
Harmonized System (HS) code | 85176990 |
Technical details | |
Product colour | Grey |
Mean time between failures (MTBF) | 2021885.87 h |
Firmware upgradeable | Yes |
Rack mounting | No |
Optical fiber | |
Fiber ethernet cabling technology | 1000BASE-X |
Security | |
Loop protection | Yes |
Security algorithms | SNMP, SNMPv3, SSH, SSL/TLS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
IGMP proxy | Yes |
DHCP features | DHCP client, DHCP relay, DHCP snooping |
Multicast features | |
Multicast support | Yes |
Certificates | |
Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
Memory | |
Packet buffer memory | 0.525 MB |
Design | |
Wall mountable | Yes |
Product colour | Grey |
LED indicators | Yes |
Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
Rack mounting | No |
Indication | |
LED indicators | Yes |
Power | |
Power consumption (max) | 72 W |
Power supply included | Yes |
DC input voltage | 52 - 57 V |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 60 W |
Power over Ethernet (PoE) ports quantity | 5 |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -20 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Heat dissipation | 245.52 BTU/h |
Weight & dimensions | |
Width | 193 mm |
Depth | 84 mm |
Height | 26 mm |
Weight | 410 g |
Packaging data | |
Package width | 242 mm |
Package depth | 255 mm |
Package height | 65 mm |
Package weight | 1.08 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
