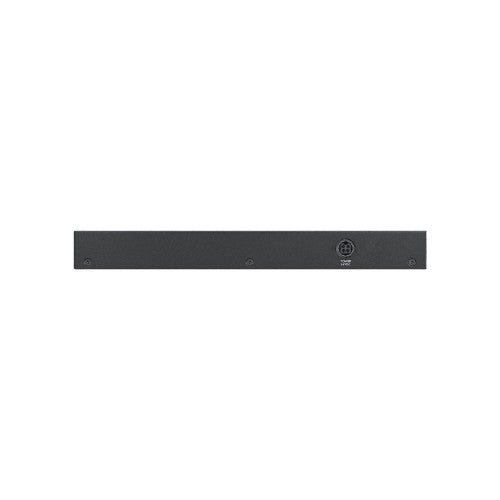

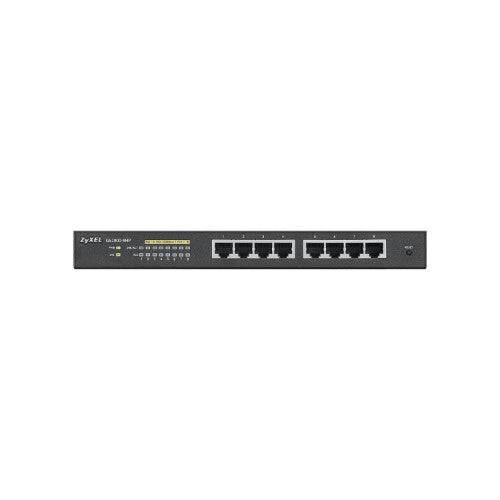

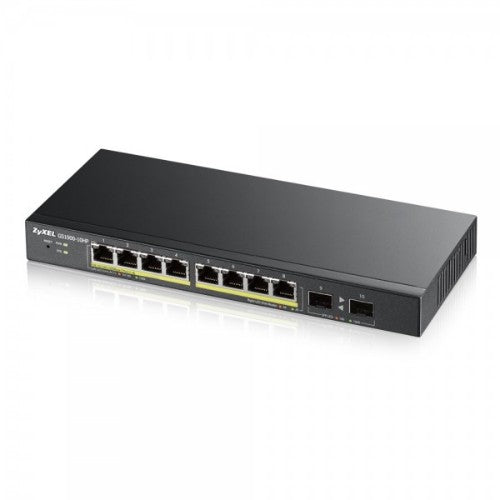

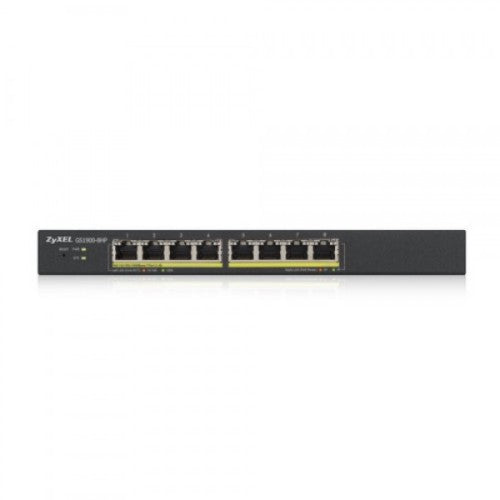

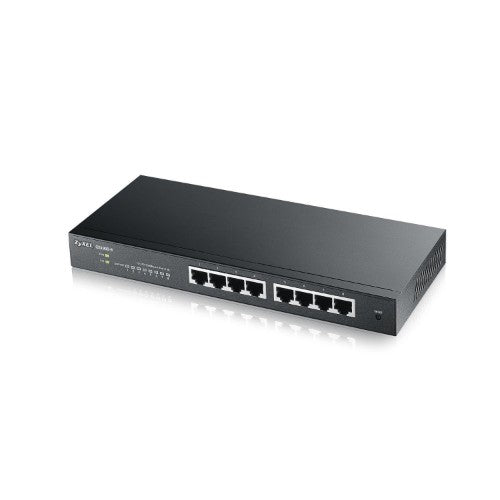

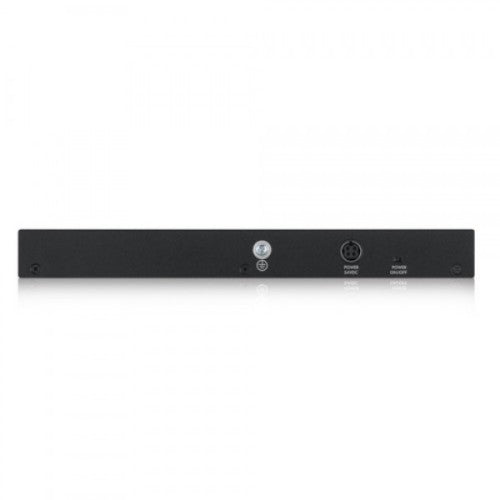

Zyxel GS1900-8HP v3 PoE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8 ports, 10/100/1000Base-T PoE, MAC8K, IEEE 802.1D STP / 802.1w RSTP / 802.1s MSTP, L2 Multicast, PoE, GB

Description

Simple, Fast and Smart Managed Switches for Small Business Connectivity

The ZyXEL GS1900 Series of 8/10/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more flexibility and connectivity. The 1900 Series consists of nine (9) models—the GS1900-8, GS1900-8HP, GS1900-10HP, GS1900- 16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with power-saving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/10HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.

The complete ZyXEL GS1900 Series has an essential portfolio of 8/10/16/24/48-port compact desktop and rackmount size with GbE connectivity. All models support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options1. It’s now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-10HP/24/24HP/48/48HP is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.

The GS1900-8HP/10HP/24HP/48HP features IEEE 802.3at PoE Plus with up to 30 W powers per port to flexibly extend network deployment, especially for high-power devices such as Wi-Fi APs, IP cams and IP phones. The 802.3at PoE Plus capability makes the switch ideal for connecting numerous powered devices to form a flawless business network.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Virtual LAN features
VLAN support	Yes
Power
Power connector	DC-in jack
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	90 W
Power source	AC/DC
Technical details
Product colour	Black
Mean time between failures (MTBF)	533086 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Data transmission
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Security
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
IGMP snooping	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Certificates
Certification	CE, FCC, C-Tick, RoHS
Design
Reset button	Yes
Product colour	Black
Certification	CE, FCC, C-Tick, RoHS
Performance
Mean time between failures (MTBF)	533086 h
Harmonized System (HS) code	85176990
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	70 W
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	250 mm
Depth	104 mm
Height	27 mm
Weight	710 g
Logistics data
Harmonized System (HS) code	85176990
