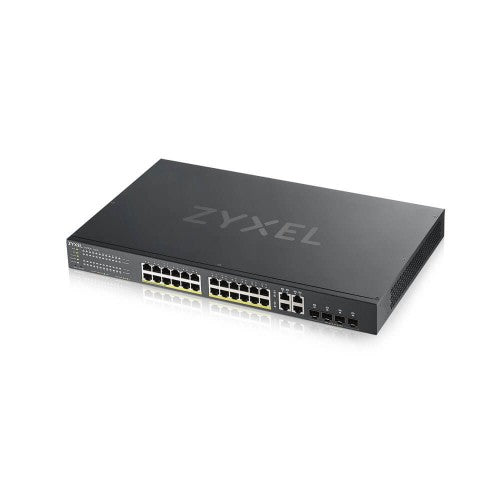

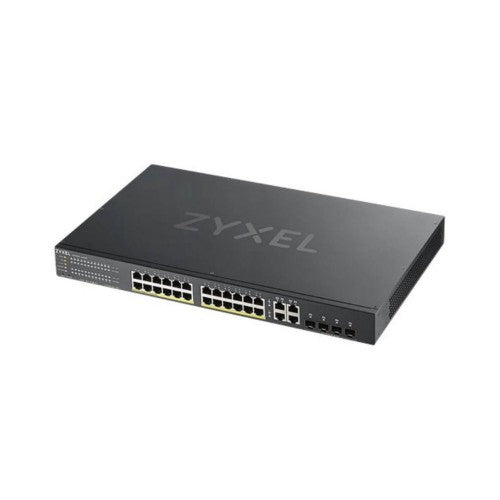

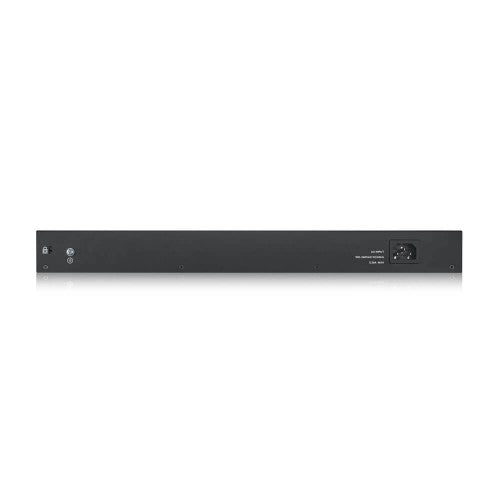

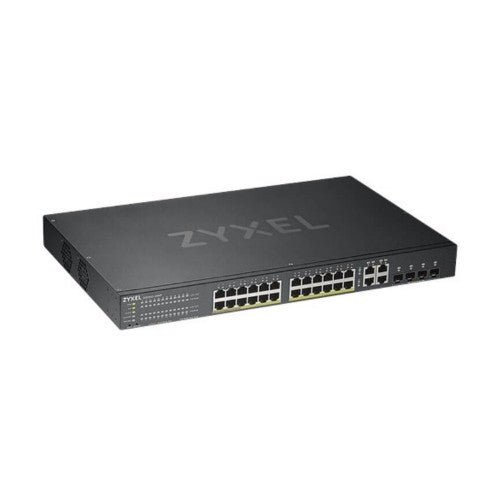

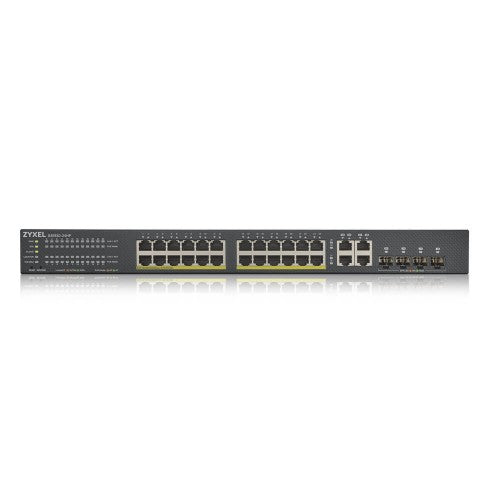

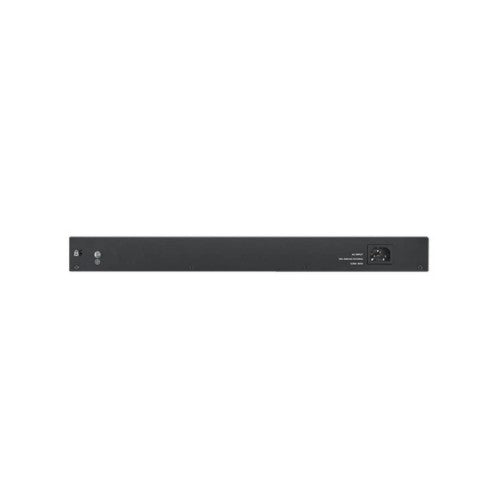

Zyxel GS1920-24HPv2 Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

GS1920-24HPv2 - 24-port GbE Smart Managed PoE

Key Features

• Whisper-quiet operation: Smart fan and fanless designs for silent operation in your workplace
• User-friendly LED indicators: View real-time status instantly with cloud and PoE power-usage LED indicators
• Power more devices more easily: Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments
• Zyxel ONE Network: Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click

Description

A new-look smart managed switch with a refreshed design inside and out!
The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.

Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.

Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.

Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.

Specifications

Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Switch layer	L2/L3/L4
Ports & interfaces
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Fiber optic connector	SFP
Network
IGMP snooping	Yes
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Flow control support	Yes
10G support	No
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Virtual LAN features
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Optical fiber
Fiber optic connector	SFP
Performance
Packet buffer memory	1.5 MB
Noise level	27.2 dB
Mean time between failures (MTBF)	638691 h
Internal memory	256 MB
Flash memory	32 MB
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Noise level	27.2 dB
Mean time between failures (MTBF)	638691 h
Rack mounting	Yes
Data transmission
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Forwarding rate	42 Mpps
Security
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SNMPv3
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SPQ, WFQ, Weighted Round Robin (WRR)
Password protection	Yes
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP client, DHCP relay, DHCP snooping, DHCPv6 relay
Multicast features
Multicast support	Yes
Certificates
Electromagnetic compatibility	FCC 15 A, CE A, BSMI EMC
Certification	RoHS
Memory
Packet buffer memory	1.5 MB
Internal memory	256 MB
Flash memory	32 MB
Design
Product colour	Black
LED indicators	Yes
Electromagnetic compatibility	FCC 15 A, CE A, BSMI EMC
Certification	RoHS
Rack mounting	Yes
Indication
LED indicators	Yes
Power
Power consumption (max)	463.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	375 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	1580.54 BTU/h
Weight & dimensions
Width	441 mm
Depth	270 mm
Height	44 mm
Weight	3.8 kg
Packaging data
Package type	Box
Rack mount kit	Yes
Package width	616 mm
Package depth	355 mm
Package height	107 mm
Package weight	4.97 kg
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
Cables included	AC
