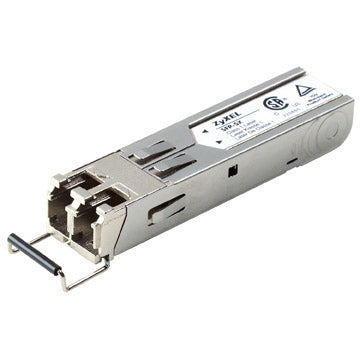

Zyxel SFP-SX-D network transceiver module 1000 Mbit/s 850 nm

SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don’t have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis.
- Gigabit Performance Transmission and Flexibility
- Small Size and High Port Density
- Industry Standard-based Compliance

Gigabit Speed and Flexibility
ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density
ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price.

Industry Standards-based Compliance
ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.,

Network
Cabling technology	1000Base-LHX
Maximum data transfer rate	1000 Mbit/s
Technical details
Maximum transfer distance	550 m
Wavelength	850 nm
Dimensions (WxDxH)	56 x 13.4 x 12.46 mm
Cabling technology	1000Base-LHX
Performance
Maximum transfer distance	550 m
Wavelength	850 nm
Cabling technology	1000Base-LHX
Maximum data transfer rate	1000 Mbit/s
Harmonized System (HS) code	85369010
Features
Safety	Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11
Form factor	Plug-in
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	56 mm
Depth	13.4 mm
Height	12.5 mm
Certificates
Safety	Class 1 Laser, CSA, TUV, 21 CFR 1040.10 & 1040.11
Logistics data
Harmonized System (HS) code	85369010
Other features
Dimensions (WxDxH)	56 x 13.4 x 12.46 mm
