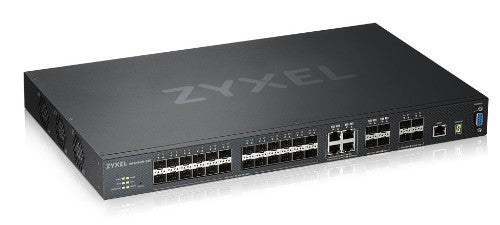

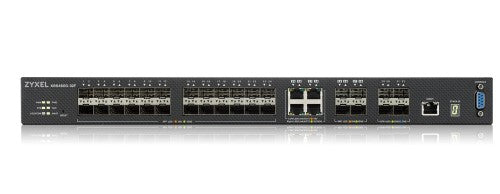

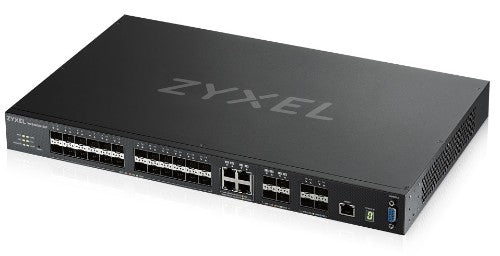

Zyxel XGS4600-32F Managed L3 Black

XGS4600 Series 28-port GbE L3 Managed Switch with 4 SFP+ Uplink Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel’s brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks. High availability To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails. Advanced L3 features Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require. Flexible management and future-proof networks The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.,

Management features
Multicast support	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L3
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity	24
SFP+ module slots quantity	4
Combo SFP ports quantity	4
Console port	RS-232
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	12000
Link aggregation	Yes
IP routing	Yes
Flow control support	No
10G support	Yes
Virtual LAN features	Tagged VLAN
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Performance
Packet buffer memory	4 MB
Noise level	60.3 dB
Mean time between failures (MTBF)	794270.06 h
Internal memory	1000 MB
Flash memory	64 MB
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Noise level	60.3 dB
Mean time between failures (MTBF)	794270.06 h
Rack mounting	Yes
Data transmission
Throughput	101.1 Mpps
Number of IP interfaces	256
Packet buffer memory	4 MB
MAC address table	32000 entries
Switching capacity	136 Gbit/s
Security
Authentication	Port-based authentication
Security algorithms	SSH, SSH-2, SSL/TLS
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Certificates
Safety	ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Certification	FCC Part 15 (Class A) CE EMC (Class A)
Memory
Packet buffer memory	4 MB
Internal memory	1000 MB
Flash memory	64 MB
Design
Safety	ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Product colour	Black
Certification	FCC Part 15 (Class A) CE EMC (Class A)
Rack mounting	Yes
Power
Power consumption (max)	60.1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	204.94 BTU/h
Weight & dimensions
Width	441 mm
Depth	270 mm
Height	44 mm
Weight	4.21 kg
Packaging data
Rack mount kit	Yes
Package width	616 mm
Package depth	335 mm
Package height	107 mm
Package weight	5.83 kg
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
