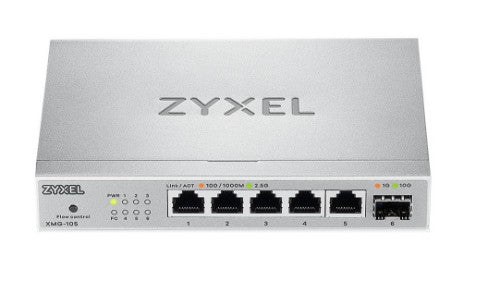

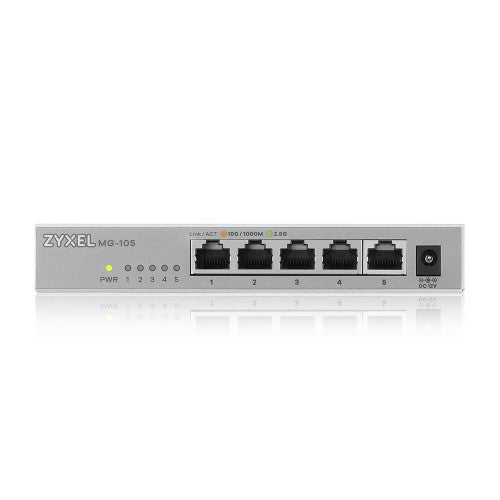

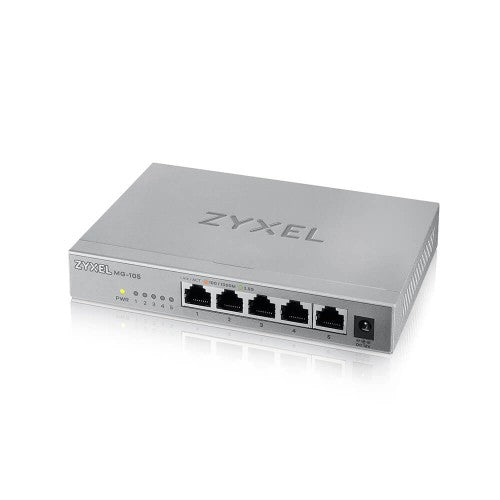

Zyxel XMG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Grey

5-Port 2.5GbE Unmanaged Switch

Description

Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

Plug-n-Play, Enjoy High Speed Network
Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.

Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	No
Data transmission
Packet buffer memory	12 MB
MAC address table	16000 entries
Switching capacity	25 Gbit/s
Jumbo frames support	Yes
Forwarding rate	18.6 Mpps
Design
Product colour	Grey
LED indicators	Activity, Link, Power
Housing material	Metal
Certification	CE, EAC, FCC, BSMI Class B
Power
Power consumption (max)	9.34 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	3.83 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	160 mm
Depth	110 mm
Height	26 mm
Weight	460 g
Packaging content
Quick start guide	Yes
Packaging data
Package width	215 mm
Package depth	133 mm
Package height	79 mm
Package weight	919.6 g
Quick start guide	Yes
Performance
Packet buffer memory	12 MB
Technical details
Product colour	Grey
Housing material	Metal
Memory
Packet buffer memory	12 MB
Certificates
Certification	CE, EAC, FCC, BSMI Class B
Indication
LED indicators	Activity, Link, Power
