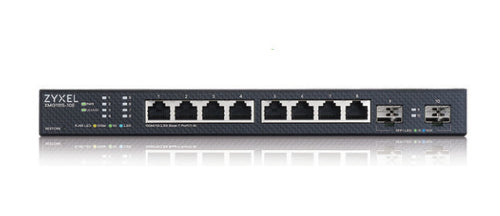

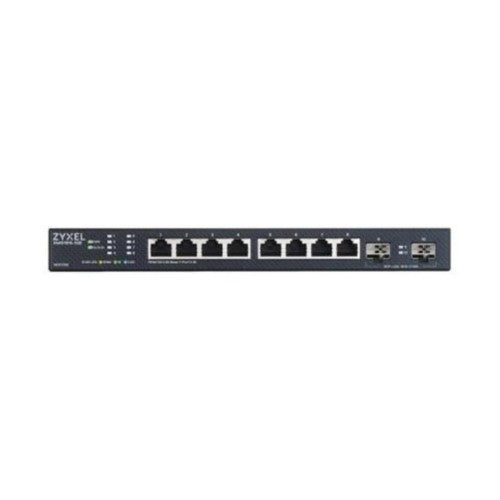

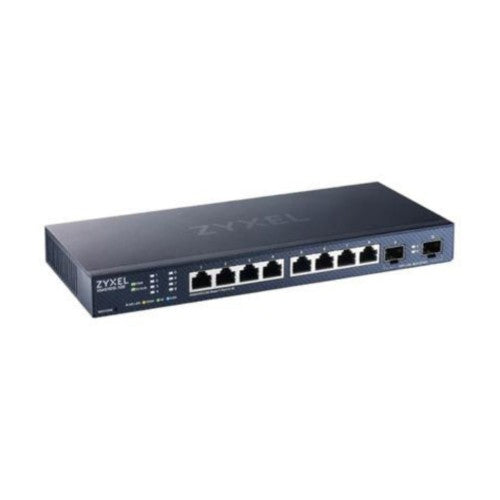

Zyxel XMG1915-10E Managed L2 2.5G Ethernet (100/1000/2500)

8-Port 2.5 GbE, 2 SFP+ Smart Switch

Description

The Zyxel XMG1915 series is a versatile family of 2.5G Multi-Gig Smart Managed switches, available in three models with and without PoE connectivity. Each Ethernet port on these models supports 2.5G speed, and they are equipped with two 10G SFP+ ports to cater to your business’s increasing need for high network speeds. The XMG1915 series is designed to support NebulaFlex, offering the most affordable Multi-Gig hybrid switch solution for the SB/SMB market. Whether you choose to set it up through the user-friendly Web GUI or the Nebula Control center for cloud-based unified management, configuration is a breeze. This series ensures that your network can keep up with the rapid growth in data demands without breaking the bank.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	12000
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	80 Gbit/s
Jumbo frames support	Yes
Forwarding rate	59.5 Mpps
Security
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Authentication type	RADIUS
DHCP features	DHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast support	Yes
Multicast features	Multicast forwarding
Design
LED indicators	Yes
Rack mounting	No
Performance
Mean time between failures (MTBF)	646.958 h
Internal memory	256 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Packet buffer memory	1.5 MB
Power
Power consumption (max)	13.13 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Voice VLAN
Weight & dimensions
Width	250 mm
Depth	104 mm
Height	27 mm
Weight	780 g
Packaging content
Cables included	AC
Technical details
Mean time between failures (MTBF)	646.958 h
Firmware upgradeable	Yes
Rack mounting	No
Memory
Packet buffer memory	1.5 MB
Internal memory	256 MB
Flash memory	32 MB
Indication
LED indicators	Yes
Packaging data
Cables included	AC
